10' ADJUSTABLE SHEET METAL CATTLE ALLEY
FREE SHIPPING

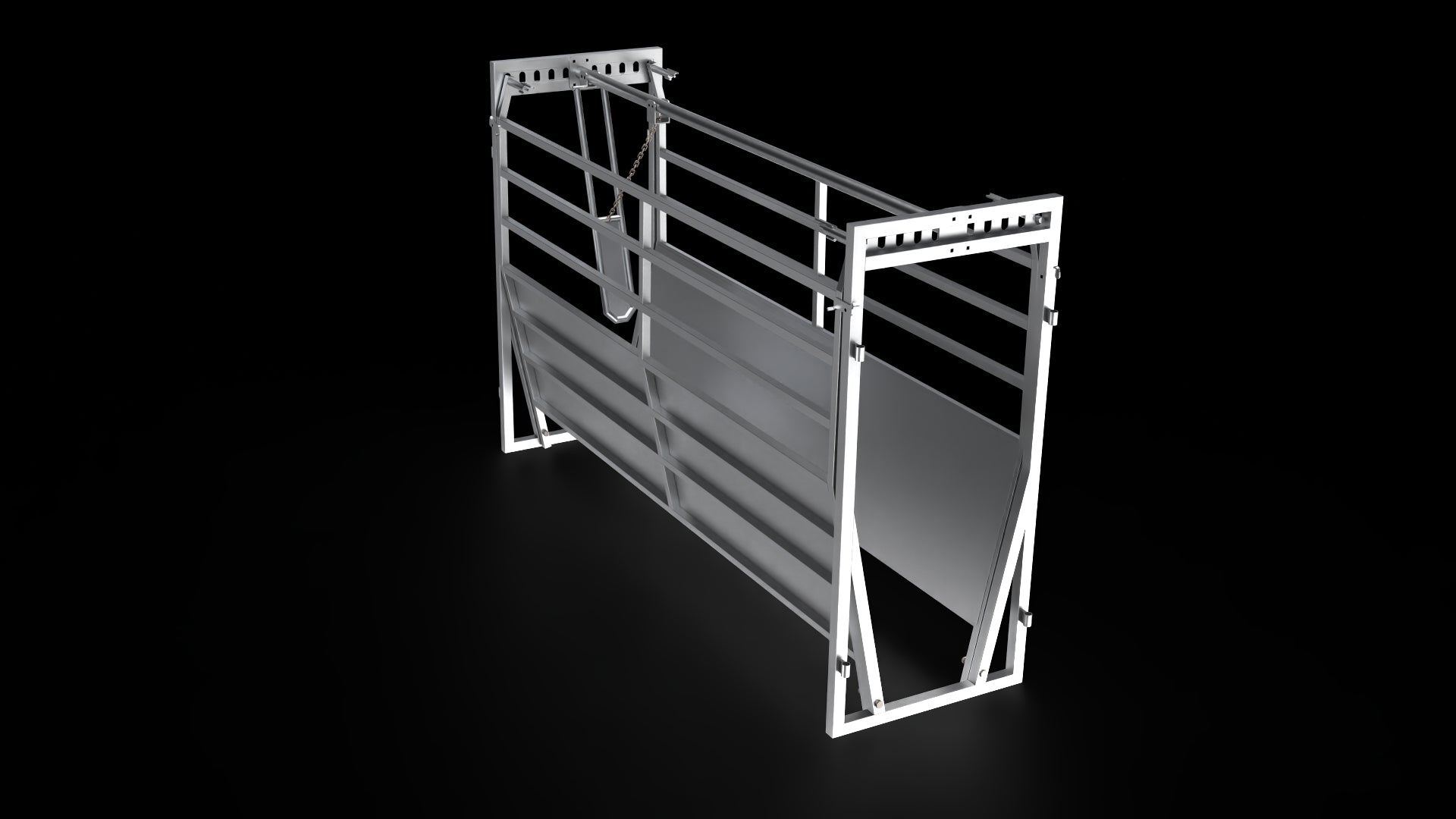

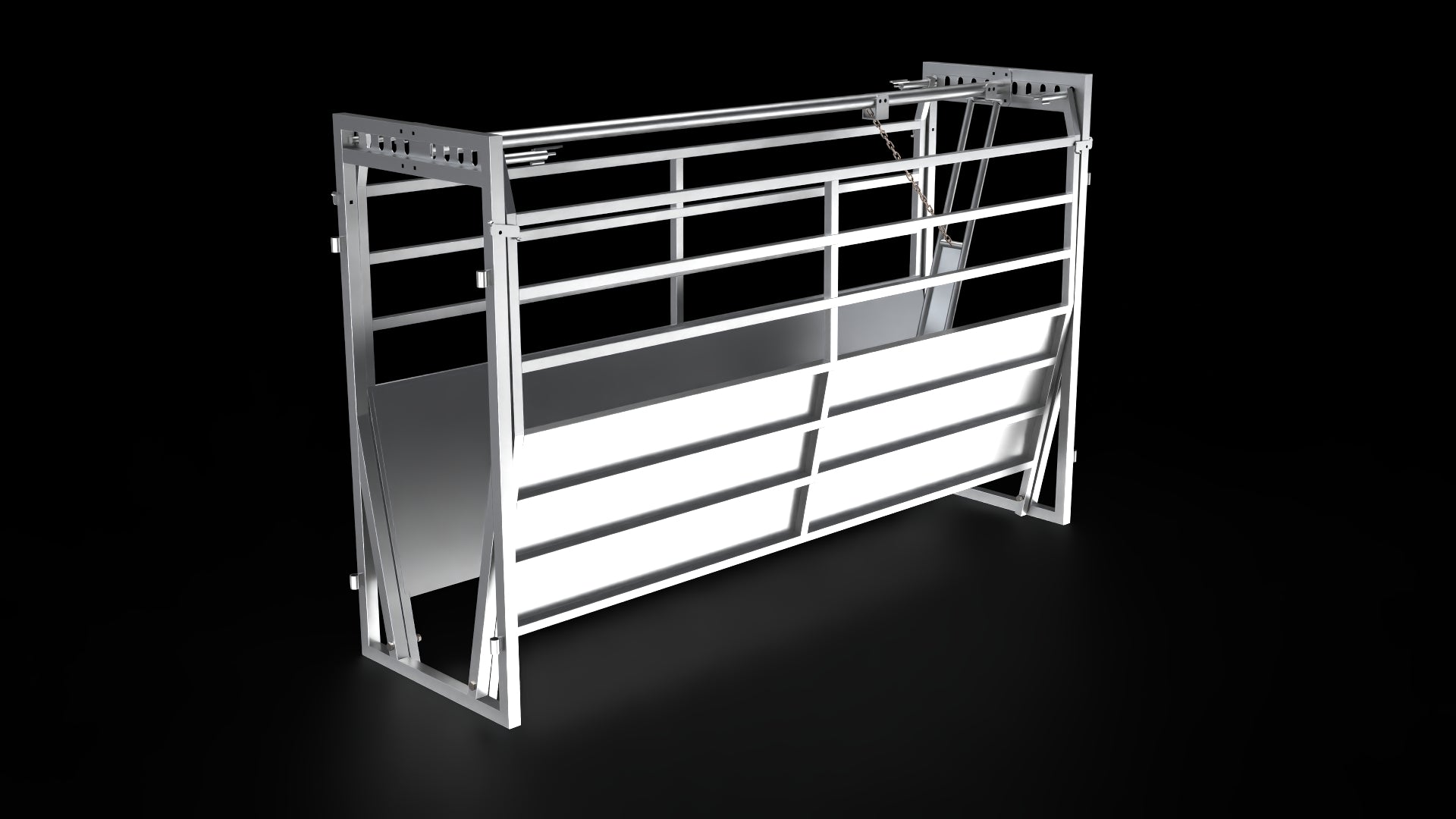

Handle calves through mature cattle with one versatile straight alley. Red River Arenas' 10' Adjustable Sheet Metal Cattle Alley adjusts from 10-1/2" to 32-1/4" wide, allowing you to size the alley for the cattle being worked.
Independent Width Adjustment
Both side panels can be adjusted independently at the top and bottom. Adjust one side or both sides to change the alley width, maintain the built-in V-bottom, or increase the taper when needed. Spring-loaded latches secure each panel within the adjustable end arches.

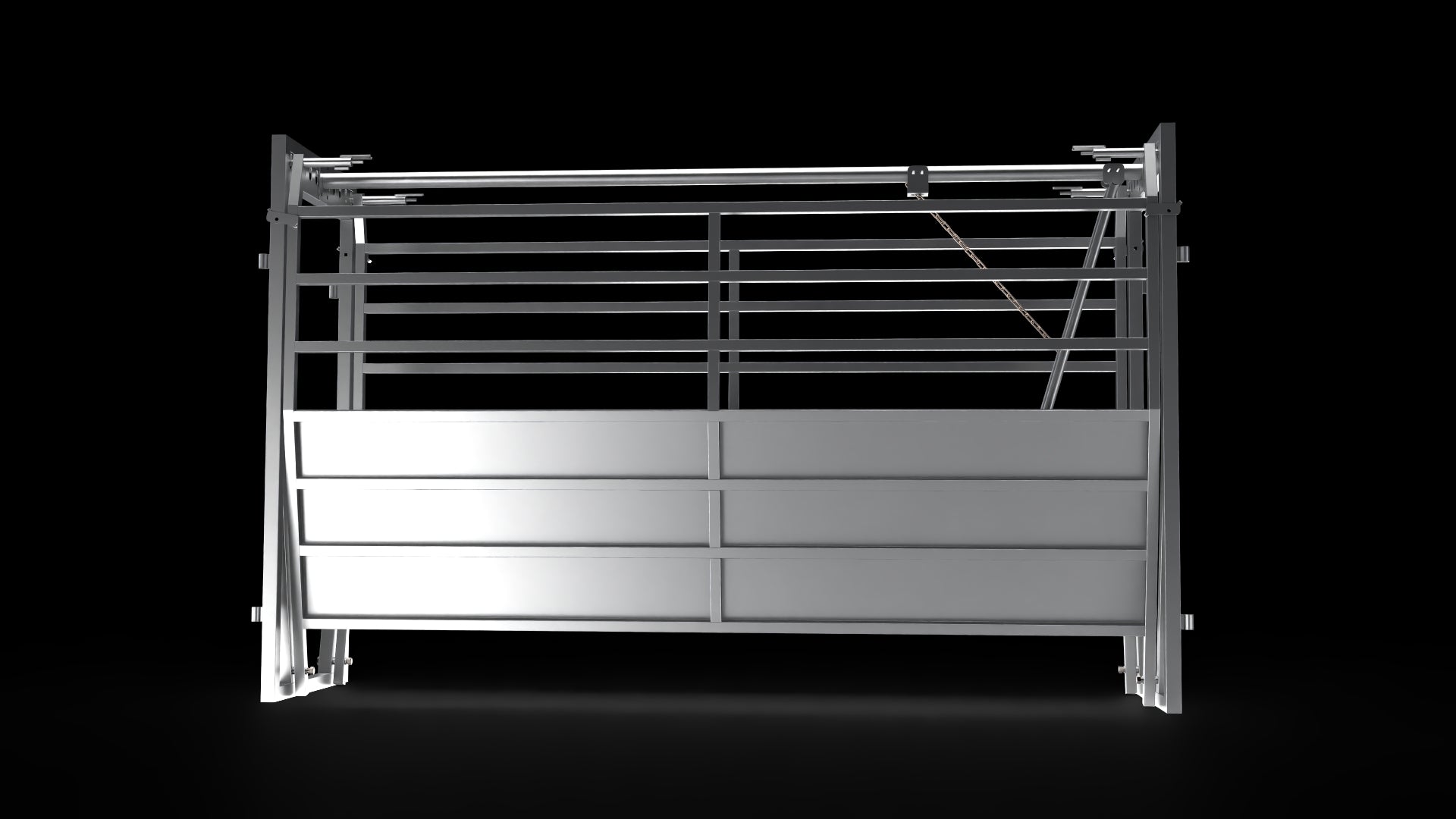

Solid Lower Sides with Open Access
The lower portion of each alley panel is covered with 14-gauge galvanized sheet metal to create a solid visual barrier and reduce outside distractions. The upper portion remains open, providing access to cattle while they move through the alley.

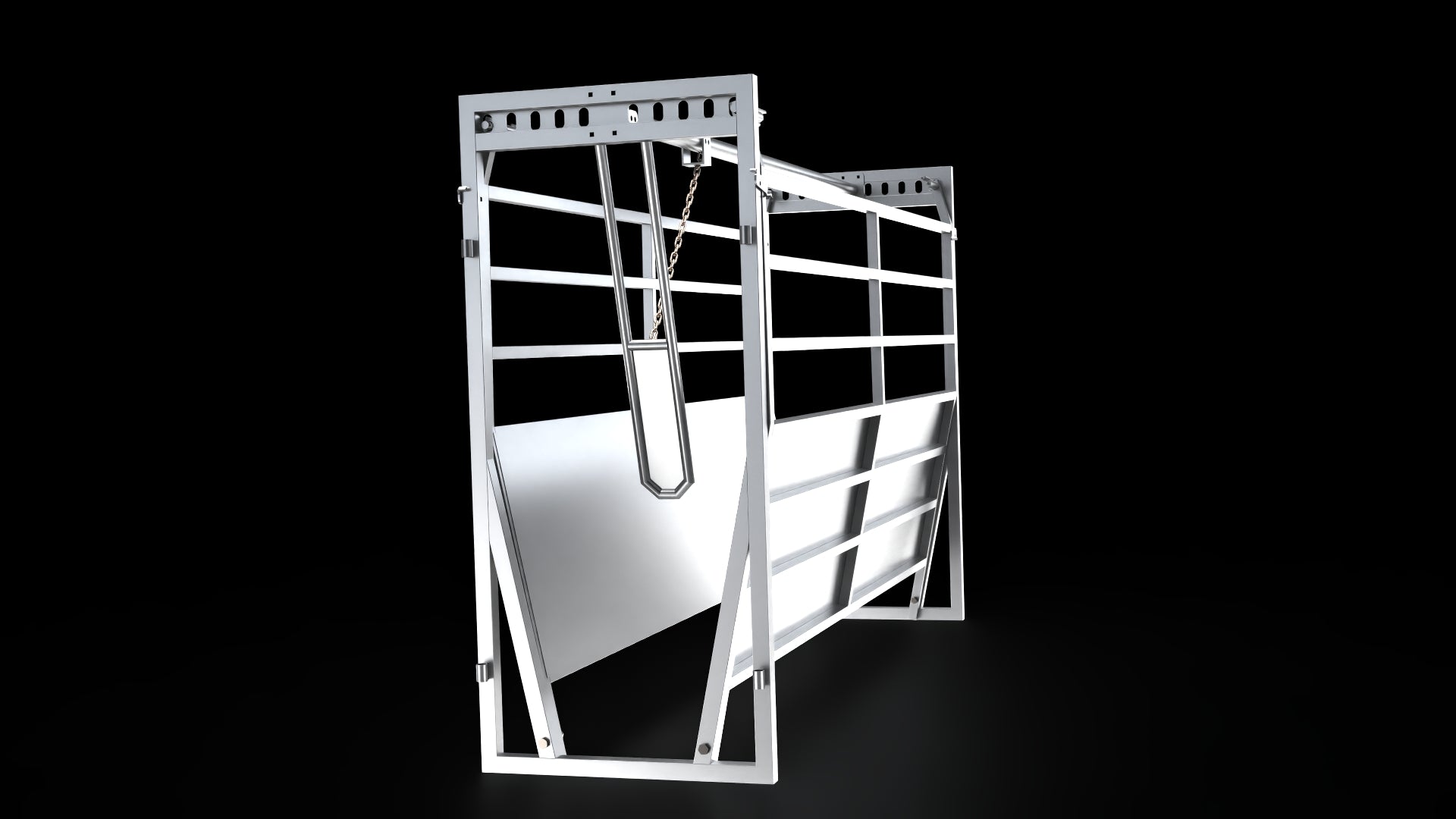

Chain-Suspended Butt Bar
The included hang-down butt bar suspends from a chain. As cattle move forward, the butt bar passes over the animal and drops behind it to form a back block that discourages backing.
Expandable Cattle-Handling System
The alley connects to a Top Hand squeeze chute, sweep tub, or another adjustable alley section using the included fishhook pins. Add additional 10' sections whenever a longer working alley is needed. The alley does not have to be anchored or bolted down.
Complete Alley Includes:
- 2 adjustable alley panels
- 2 adjustable alley arches
- 1 adjustable alley bar
- 1 chain-suspended butt bar/hang-down gate
- 4 fishhook pins
Specifications:
- Length: 10'
- Side Panel Height: 6'
- Overall Height: 6' 7"
- Adjustable Inside Width: 18" to 32-1/4"
- Panel Frame: 1-1/2" square galvanized tubing, 16 gauge
- Lower Sheeting: 14-gauge galvanized sheet metal
- Livestock Range: Calves through mature cattle
- Ships unassembled
- No anchoring or bolting required
