Description
ULTIMATE TUB & ALLEY PACKAGE
FREE SHIPPING
Get maximum flexibility from your cattle-working setup with Red River Arenas' Ultimate Tub & Alley Package. This package combines a 180° Sheeted Cattle Crowding Tub with a 10' Adjustable Sheet Metal Cattle Alley to create a controlled path for cattle of different sizes.
The sheeted lower sides help reduce outside distractions as cattle move through the tub and alley. The alley adjusts at both the top and bottom, allowing you to change its width and taper for calves through mature cattle.
Complete Package Includes:
- 180° Sheeted Cattle Crowding Tub
- 10' Adjustable Sheet Metal Cattle Alley
- Sheeted Locking Sweep Gate
- Chain-Suspended No-Back Butt Bar
- Adjustable Alley Arches and Bar
- Required Fishhook Connections

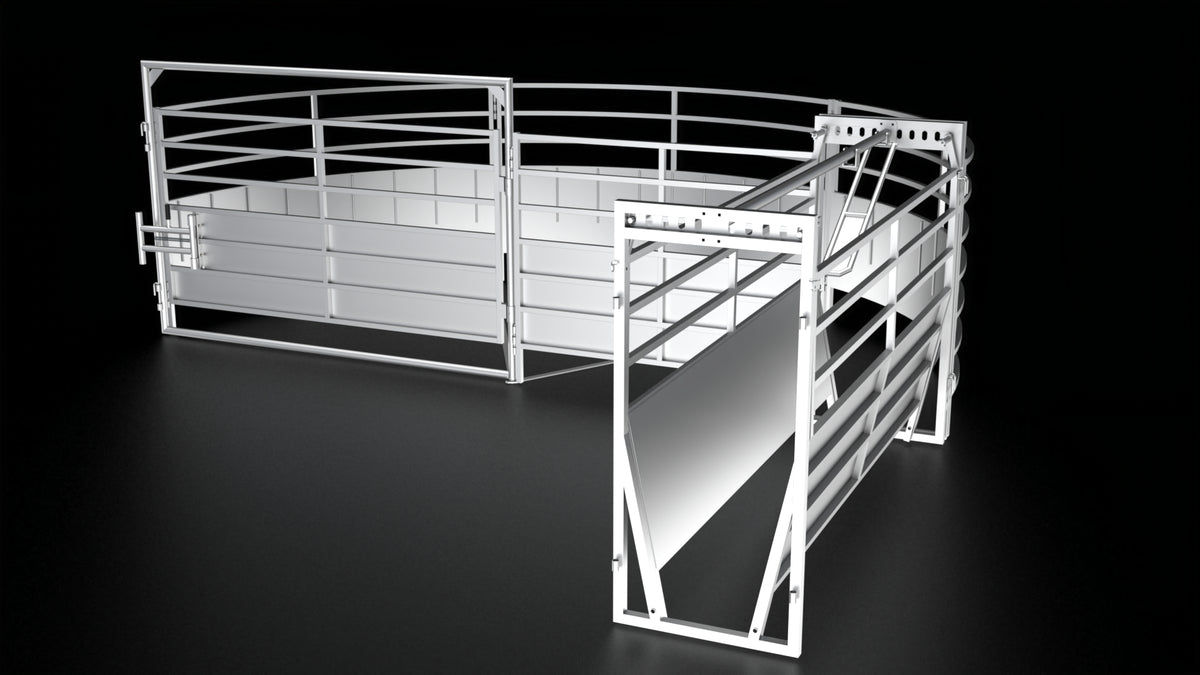

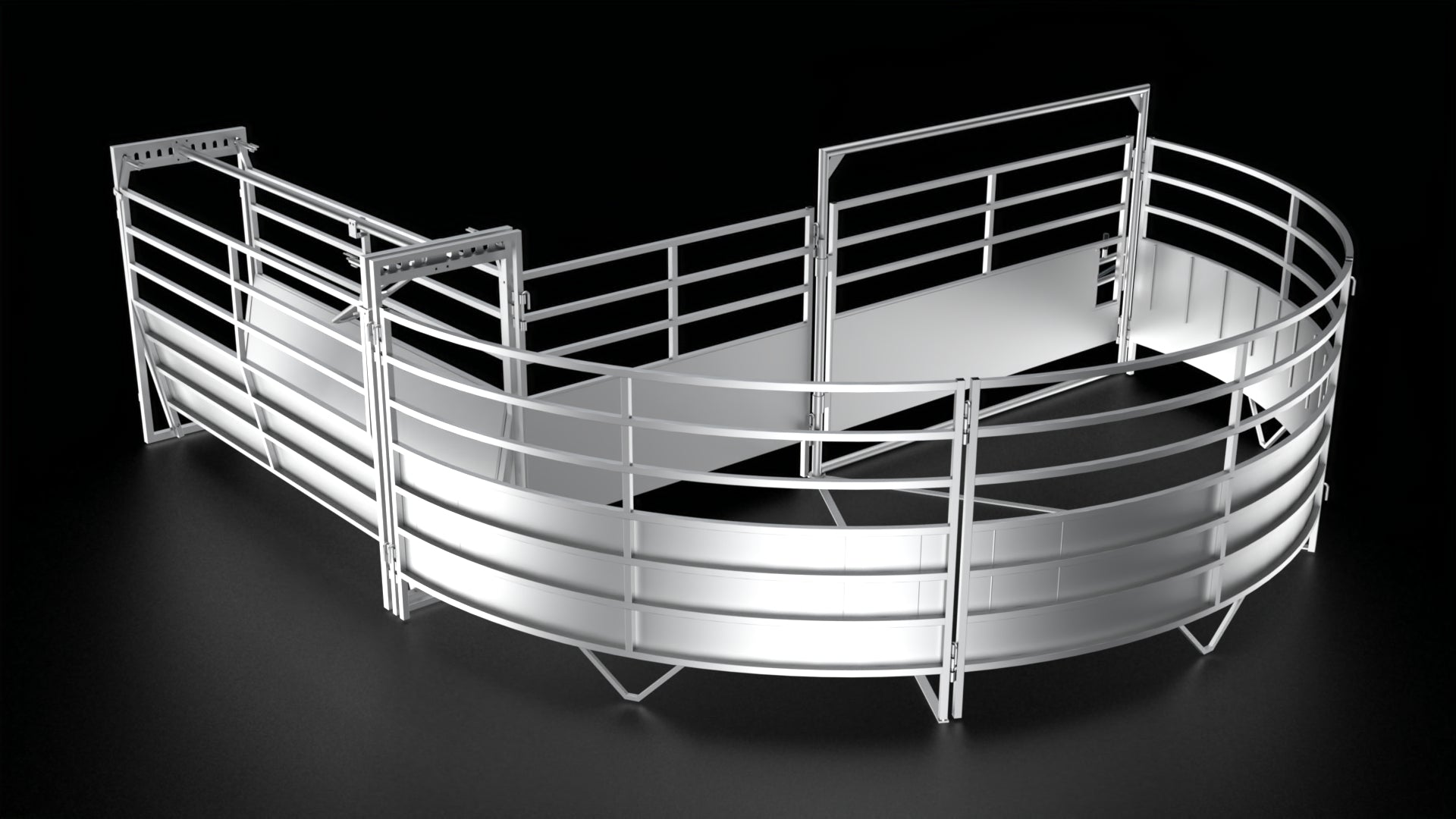

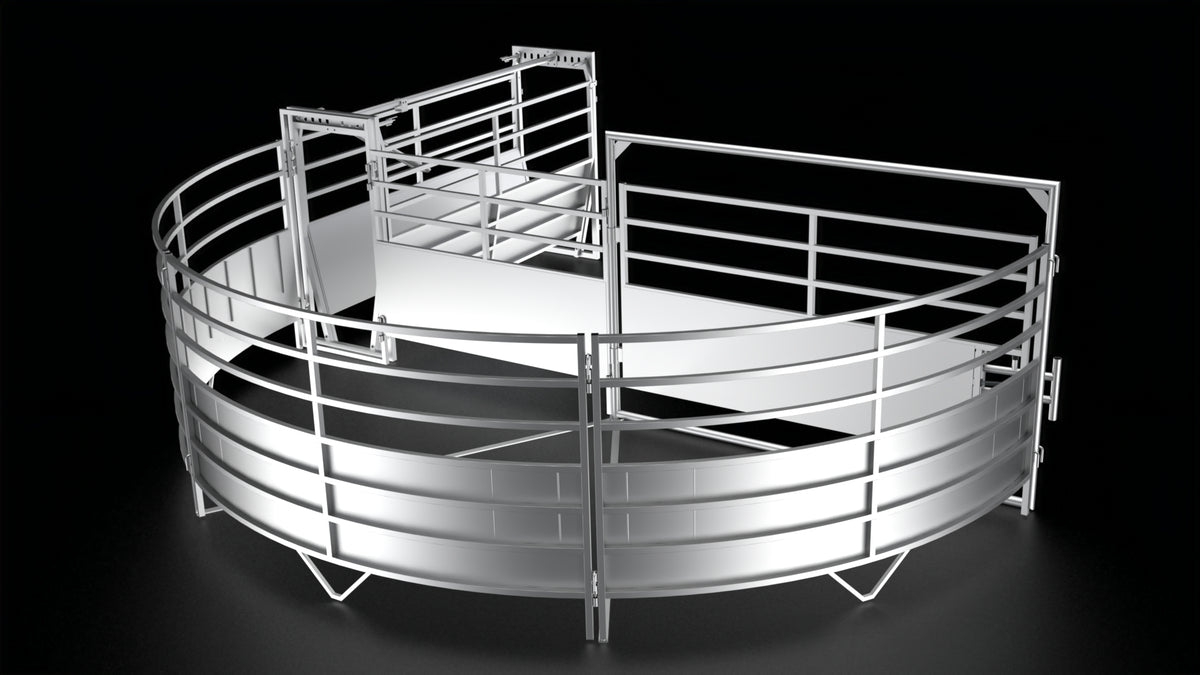

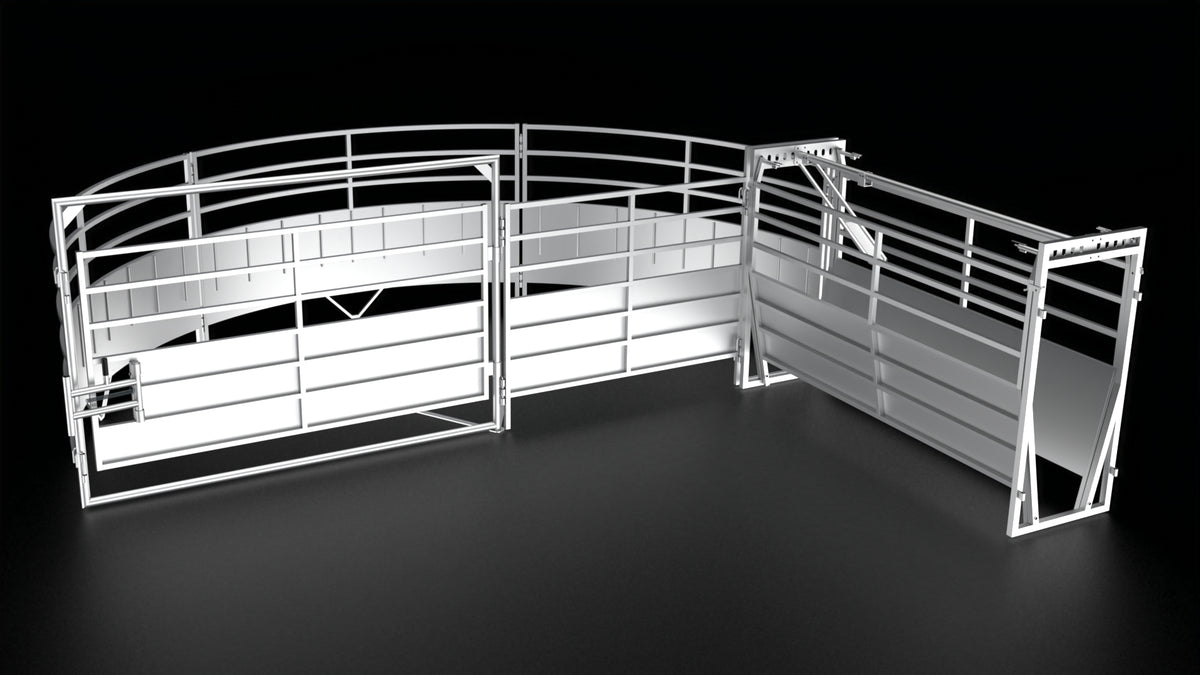

180° Sheeted Cattle Crowding Tub
The half-circle tub measures approximately 20' across by 10' deep. The lower portion of the tub panels and sweep gate is covered with 14-gauge galvanized sheet metal to help limit distractions. A spring-loaded locking mechanism holds the sweep gate at positions around the tub and discourages cattle from pushing it backward.
10' Adjustable Sheet Metal Cattle Alley
The alley adjusts from 10-1/2" to 32-1/4" wide to accommodate calves through mature cattle. Both sides can be adjusted independently at the top and bottom, allowing you to adjust one side or both sides, maintain the built-in V-bottom, or increase the taper when needed.
Solid lower sides help keep cattle focused, while open upper rails preserve handler visibility and access. Spring-loaded latches secure the alley panels within the adjustable end arches.
Chain-Suspended No-Back Butt Bar
As cattle move forward, the chain-suspended butt bar passes over the animal and drops behind it to form a back block that discourages backing out of the alley.
Features:
- 180° half-circle tub layout
- Sheeted crowding tub and sweep gate
- Spring-loaded locking sweep gate
- 10' adjustable sheet-metal cattle alley
- Adjustable inside width from 18" to 32-1/4"
- Independent top and bottom adjustment
- Adjustable straight or tapered configuration
- Built-in V-bottom
- 14-gauge galvanized lower sheeting
- Open upper rails provide visibility and access
- Chain-suspended no-back butt bar
- Fishhook connections
- Can be assembled in a left- or right-hand configuration
- Ships unassembled; assembly is required
IMPORTANT: This package includes the crowding tub and alley only. A squeeze chute and palpation cage are not included.
LEFT- OR RIGHT-HAND SETUP: The crowding tub can be assembled in either a left- or right-hand configuration. When assembled opposite the configuration shown, the sheet metal will face the opposite direction; this does not affect the tub's operation.
