The Rancher Standard Cattle Working System
Description
THE RANCHER STANDARD CATTLE WORKING SYSTEM
FREE SHIPPING

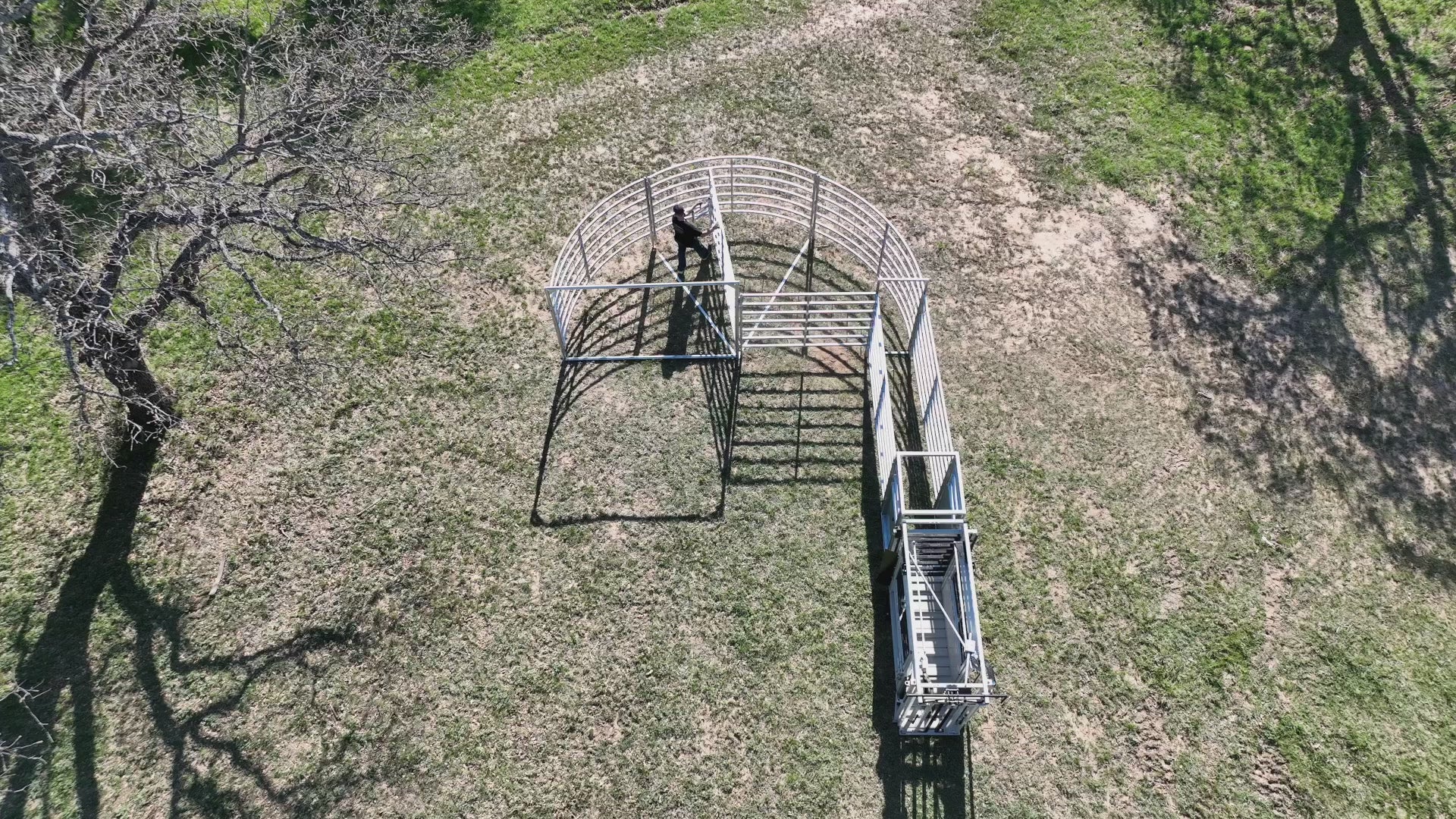

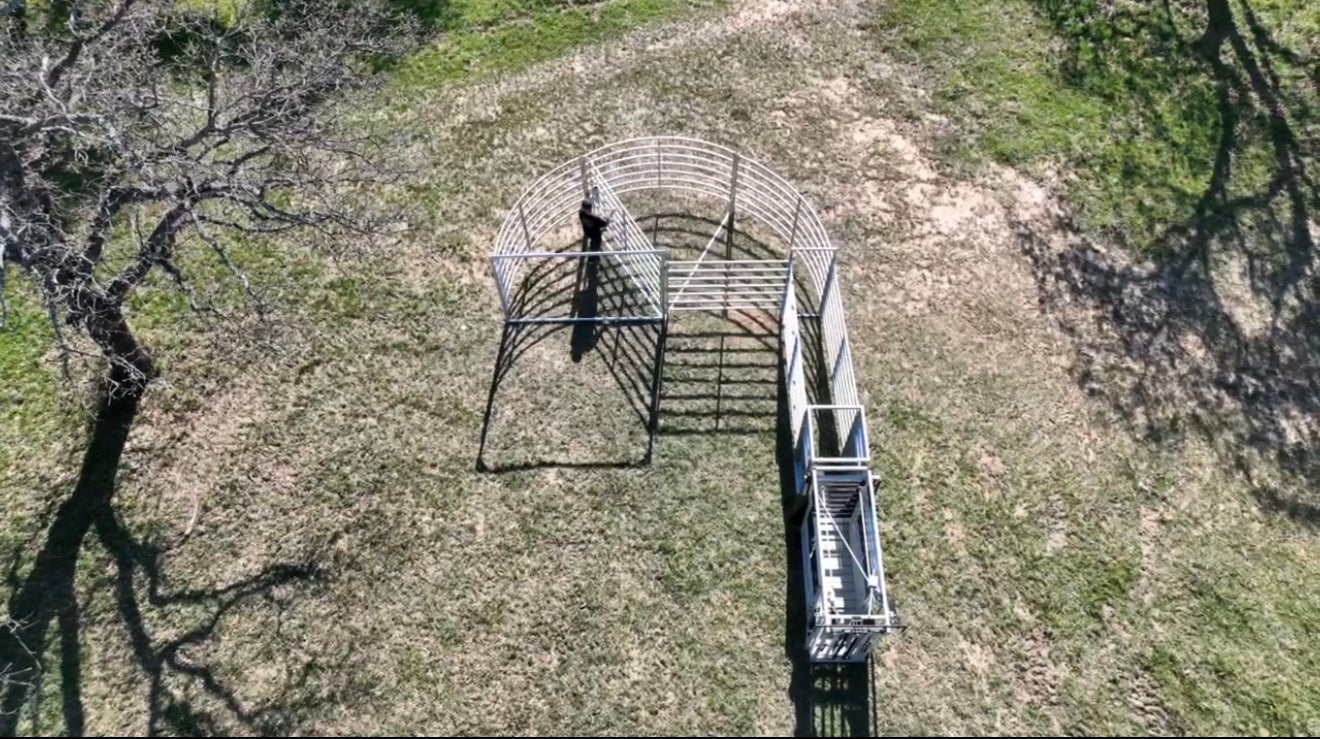

Build a complete cattle-handling path with Red River Arenas' Rancher Standard Cattle Working System. This package combines the Top Hand Self-Catch Squeeze Chute with a 180° open crowding tub and a 10' straight open alley.
The open-sided tub and alley provide clear visibility while cattle move through the system. The modular design allows you to add a palpation cage or additional matching alley sections as the needs of your operation grow.
Some product images may show the optional palpation cage. The palpation cage is not included in the base price and may be selected under Available Product Add-Ons.
Top Hand Self-Catch Squeeze Chute
The Top Hand Squeeze Chute features a self-catch headgate that opens fully inward and outward. Split upper and lower access doors on both sides provide access to the animal, while emergency-release access helps handlers respond when needed.

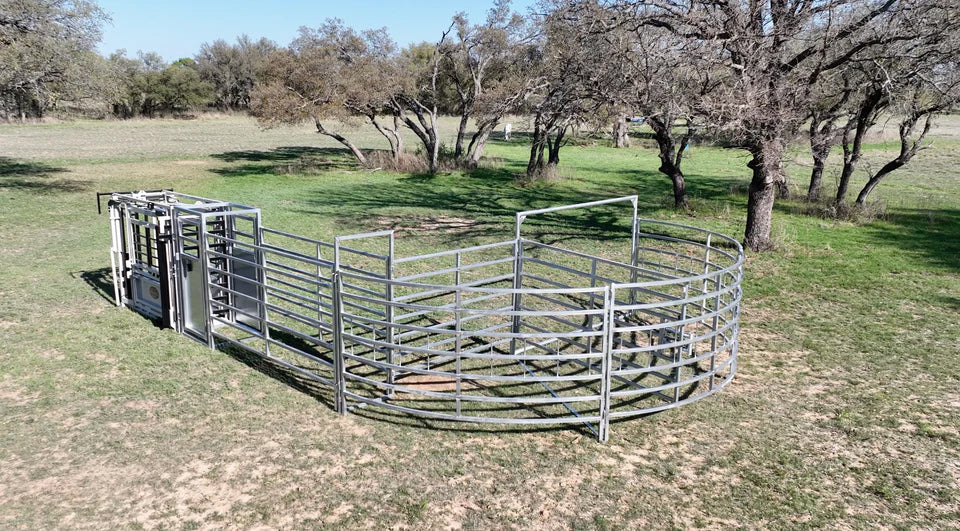

180° Open Cattle Crowding Tub
The open crowding tub uses a locking sweep gate to guide cattle toward the alley entrance. Open galvanized rails provide visibility throughout the tub while maintaining a controlled path into the alley.

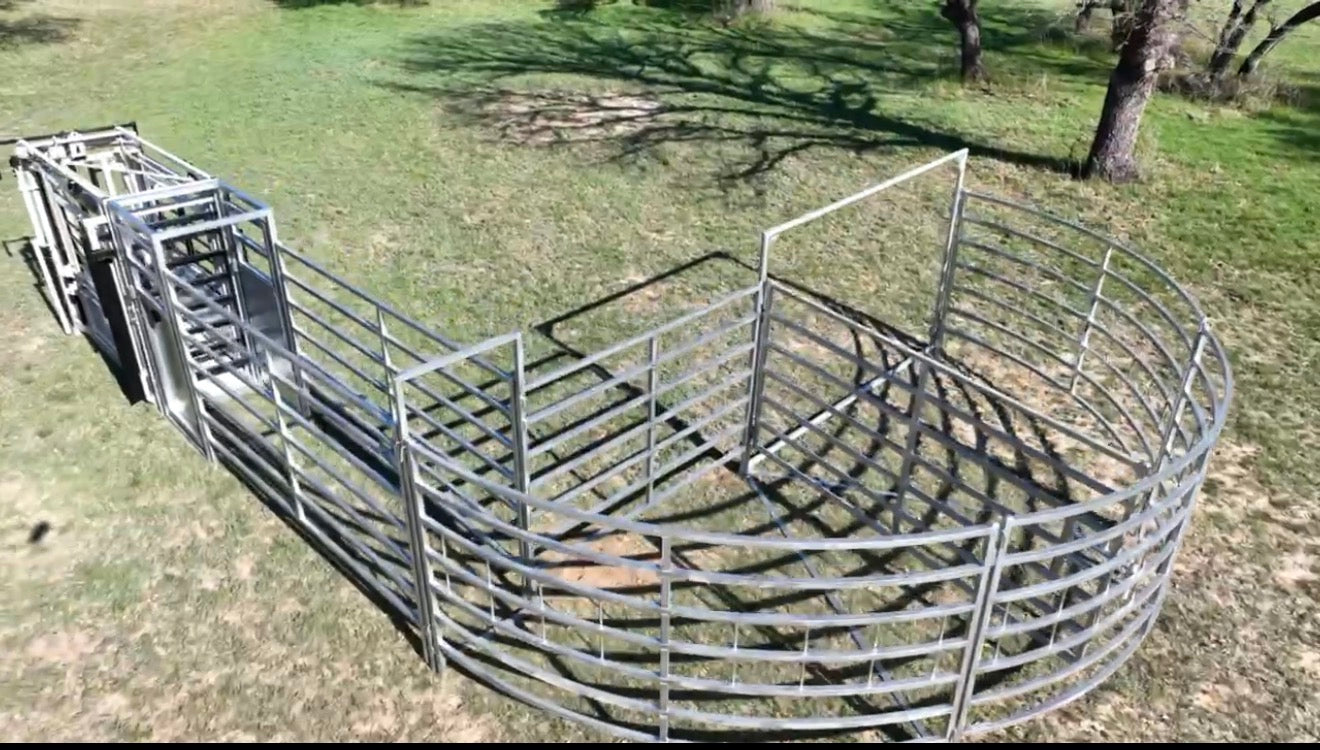

10' Straight Open Alley
The fixed-width open alley creates a direct path from the tub to the squeeze chute. Open rails provide visibility and access while cattle move through the working system.
Complete System Includes:
- 1 Top Hand Self-Catch Squeeze Chute
- 1 - 180° Open Cattle Crowding Tub
- 1 - 10' Straight Open Alley
- Required fishhook connections
Available Product Add-Ons:
- ADD ON - Palpation Cage
- ADD ON - 10' Straight Open Alley
180° SHEETED CATTLE CROWDING TUB
FREE SHIPPING
Guide cattle from your holding pen into the working alley with Red River Arenas' 180° Sheeted Cattle Crowding Tub. The half-circle layout measures approximately 20' across by 10' deep and uses a locking sweep gate to guide cattle toward the alley entrance.
The lower portion of the tub panels and sweep gate is covered with 14-gauge galvanized sheet metal. These sheeted lower sides create a visual barrier that helps reduce outside distractions, while the open upper rails preserve visibility into the tub.
Locking Sweep Gate
The sweep gate moves cattle toward the alley opening. Its spring-loaded locking mechanism holds the gate at positions around the tub and discourages cattle from pushing it backward.
Connect to Your Alley
The straight side includes a gate, an approximately 8' panel section, and an approximately 2' opening for an alley connection. Connect a compatible existing alley, a Red River Arenas 10' Sheeted Straight Alley, or a 10' Adjustable Sheet Metal Cattle Alley.
When connecting another manufacturer's equipment, verify the opening dimensions and connection requirements before ordering.
Complete Tub Includes:
- 1 sheeted locking sweep gate
- 1 tub combo gate section
- 1 - 10' double-spool sheeted curved panel
- 2 - 10' single-spool sheeted curved panels
- 1 bottom brace with hole
- 1 bottom brace with peg
- 1 tub handle assembly with grip, bolt, locknut, and spring
- 12 fishhook pins
Specifications:
- Layout: 180° half-circle
- Approximate footprint: 20' across × 10' deep
- Approximate radius: 10'
- Lower sheeting: 14-gauge galvanized sheet metal
- Open upper rails provide visibility
- Heavy-duty galvanized steel construction
- Spring-loaded locking sweep gate
- Fishhook connections
- Can be assembled in a left- or right-hand configuration
- Ships unassembled; assembly is required
Left- or Right-Hand Setup
The crowding tub can be assembled in either a left- or right-hand configuration. When assembled opposite the configuration shown, the sheet metal will face the opposite direction; this does not affect the tub's operation.
IMPORTANT: This product includes the crowding tub only. An alley, squeeze chute, and palpation cage are not included.
The tub and alley ship unassembled; assembly is required.
THE RANCHER STANDARD CATTLE WORKING SYSTEM
FREE SHIPPING
Build a complete cattle-handling path with Red River Arenas' Rancher Standard Cattle Working System. This package combines the Top Hand Self-Catch Squeeze Chute with a 180° open crowding tub and a 10' straight open alley.
The open-sided tub and alley provide clear visibility while cattle move through the system. The modular design allows you to add a palpation cage or additional matching alley sections as the needs of your operation grow.
Some product images may show the optional palpation cage. The palpation cage is not included in the base price and may be selected under Available Product Add-Ons.
Top Hand Self-Catch Squeeze Chute
The Top Hand Squeeze Chute features a self-catch headgate that opens fully inward and outward. Split upper and lower access doors on both sides provide access to the animal, while emergency-release access helps handlers respond when needed.
180° Open Cattle Crowding Tub
The open crowding tub uses a locking sweep gate to guide cattle toward the alley entrance. Open galvanized rails provide visibility throughout the tub while maintaining a controlled path into the alley.
10' Straight Open Alley
The fixed-width open alley creates a direct path from the tub to the squeeze chute. Open rails provide visibility and access while cattle move through the working system.
Complete System Includes:
- 1 Top Hand Self-Catch Squeeze Chute
- 1 - 180° Open Cattle Crowding Tub
- 1 - 10' Straight Open Alley
- Required fishhook connections
Available Product Add-Ons:
- ADD ON - Palpation Cage
- ADD ON - 10' Straight Open Alley
180° SHEETED CATTLE CROWDING TUB
FREE SHIPPING
Guide cattle from your holding pen into the working alley with Red River Arenas' 180° Sheeted Cattle Crowding Tub. The half-circle layout measures approximately 20' across by 10' deep and uses a locking sweep gate to guide cattle toward the alley entrance.
The lower portion of the tub panels and sweep gate is covered with 14-gauge galvanized sheet metal. These sheeted lower sides create a visual barrier that helps reduce outside distractions, while the open upper rails preserve visibility into the tub.
Locking Sweep Gate
The sweep gate moves cattle toward the alley opening. Its spring-loaded locking mechanism holds the gate at positions around the tub and discourages cattle from pushing it backward.
Connect to Your Alley
The straight side includes a gate, an approximately 8' panel section, and an approximately 2' opening for an alley connection. Connect a compatible existing alley, a Red River Arenas 10' Sheeted Straight Alley, or a 10' Adjustable Sheet Metal Cattle Alley.
When connecting another manufacturer's equipment, verify the opening dimensions and connection requirements before ordering.
Complete Tub Includes:
- 1 sheeted locking sweep gate
- 1 tub combo gate section
- 1 - 10' double-spool sheeted curved panel
- 2 - 10' single-spool sheeted curved panels
- 1 bottom brace with hole
- 1 bottom brace with peg
- 1 tub handle assembly with grip, bolt, locknut, and spring
- 12 fishhook pins
Specifications:
- Layout: 180° half-circle
- Approximate footprint: 20' across × 10' deep
- Approximate radius: 10'
- Lower sheeting: 14-gauge galvanized sheet metal
- Open upper rails provide visibility
- Heavy-duty galvanized steel construction
- Spring-loaded locking sweep gate
- Fishhook connections
- Can be assembled in a left- or right-hand configuration
- Ships unassembled; assembly is required
Left- or Right-Hand Setup
The crowding tub can be assembled in either a left- or right-hand configuration. When assembled opposite the configuration shown, the sheet metal will face the opposite direction; this does not affect the tub's operation.
IMPORTANT: This product includes the crowding tub only. An alley, squeeze chute, and palpation cage are not included.
The tub and alley ship unassembled; assembly is required.
